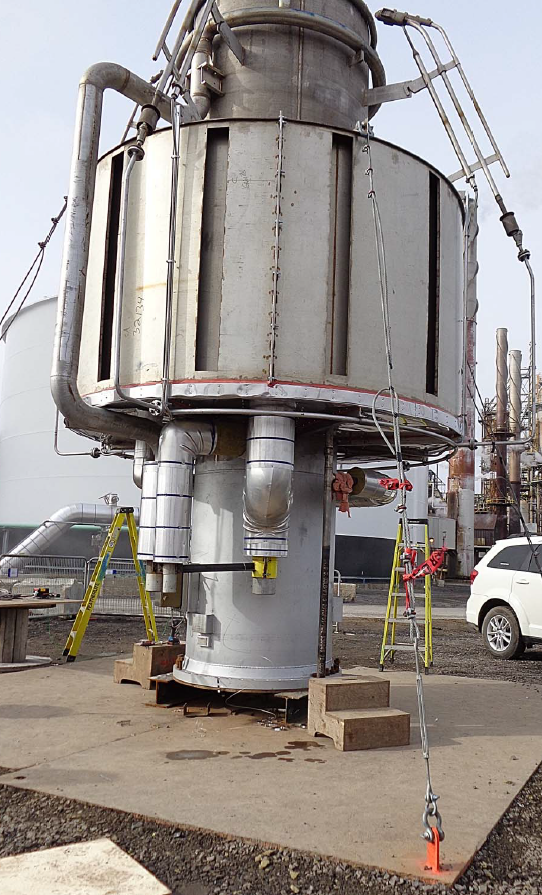

Application: Steam-assisted flare tip for smokeless combustion of hydrocarbon waste gases. Designed for propane/butane service.

Specifications

Diameter: 48-inch flare tips

Pilots: 4 total (3 × WP4 Instafire pilots with natural gas, 1 × WP3 FFG with Type K thermocouple)

Ignition: KEP Ignition System & Instafire™ with Flame Front Generator

Purge Reduction Device: AR-48 Airrestor (min. purge 1,772 SCFH NG/N₂; without center nozzle: 40,000 SCFH)

Steam Injection System:

Shepherd Steam Ring: up to 7,000 lb/hr

Lower Steam Ring: up to 50,000 lb/hr

Center Sparger: up to 3,000 lb/hr

Pilot Fuel: ~50 SCFH each, 15 psig natural gas

Design Basis: ~1,117,000 lb/hr flow, MW 50.4, 333°F

Condition

One used flare tip (previously installed) 2003 repaired 2019
One unused (stored) 2010

Full documentation package available (O&M manuals, drawings, nameplates).
