1.5" 300# Control Valve
Supporting Documents (1)
library_books
Short Listing Description
Fisher ES control valve with Bettis M2CP electric actuator assembly, tag 250-0-FV-213, Fisher serial / unit F002909753. The valve is a 1-1/2 in Fisher ES, 300 RF / CL300, 316 SST / CF8M configuration with 1-7/8 in port, EQ% cage, PTFE packing, and CoCr-A / stainless trim details shown in the supplied PO/certificate information. The actuator is a Bettis M2CP / Series 2000 electric actuator, model JCAA-B, 90 VDC, 10 RPM, with hazardous-location markings visible on the nameplate.

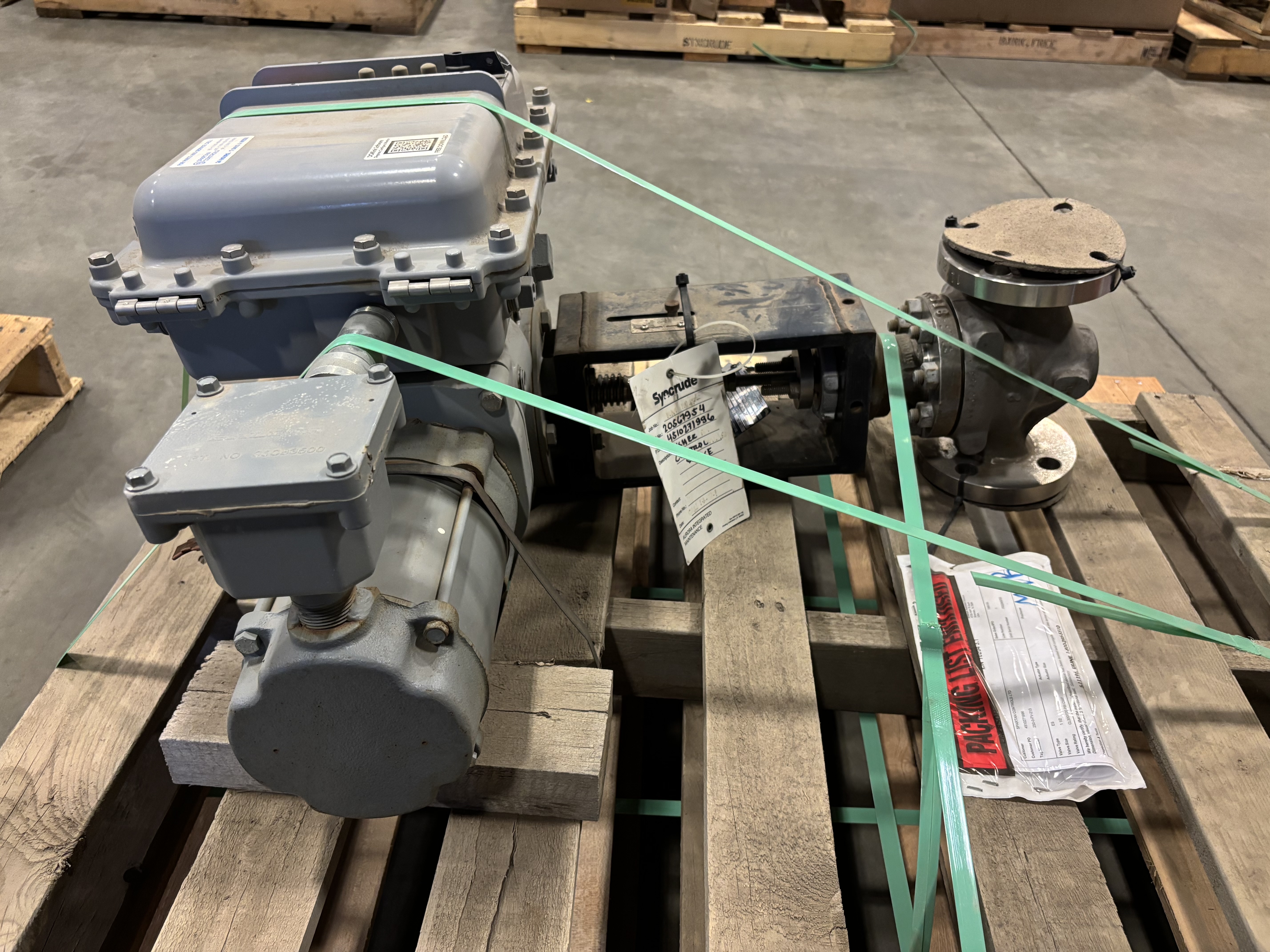

The assembly is palletized and strapped with documentation visible, including Emerson/Fisher declaration of compliance, inspection certificate paperwork, and an Emerson Lifecycle Services repair report. The important condition disclosure is that the repair report appears to state that the valve failed NDE, was evaluated for repair, received a weld repair on a crack found on the bottom of the valve body, had new gaskets and packing installed, and then passed NDE and post-repair testing.
Key Details
| Manufacturer | Fisher / Emerson; Bettis / Emerson actuator |
| Item | Fisher ES control valve with electric actuator assembly |
| Fisher serial / unit | F002909753 |
| Tag number | 250-0-FV-213 |
| Valve size | 1-1/2 in |
| Port size | 1-7/8 in |
| Connection / rating | 300 RF; CL300 / 720 PSI CWP |
| Valve material notes | 316 SST / CF8M body context; SST plug/stem; Co alloy / CoCr-A seat notes visible |
| Cage / trim notes | EQ% cage; trim #37; 17-4 PH SST cage material per PO screenshot |
| Packing | Single PTFE; repair report states new gaskets and packing were installed |
| Actuator | Bettis M2CP / Series 2000 electric actuator |
| Actuator model | JCAA-B |
| Actuator power | 90 VDC |
| Actuator speed | 10 RPM |
| Motor | 1/4 HP, 1785 RPM |
| Quantity | 1 assembly |
| Condition wording | Documented repaired/tested surplus assembly |
