Honeywell UV/IR Viewing Heads & ISO-UNIT Sealing Unions — Lot of 4
Supporting Documents (1)
library_booksSpecs.pdf
Listing ID:
ASSK-63663
Connection Status:
Disconnected
Notes:
Included Items
| Item | Part Number | Description | Quantity |
|---|---|---|---|

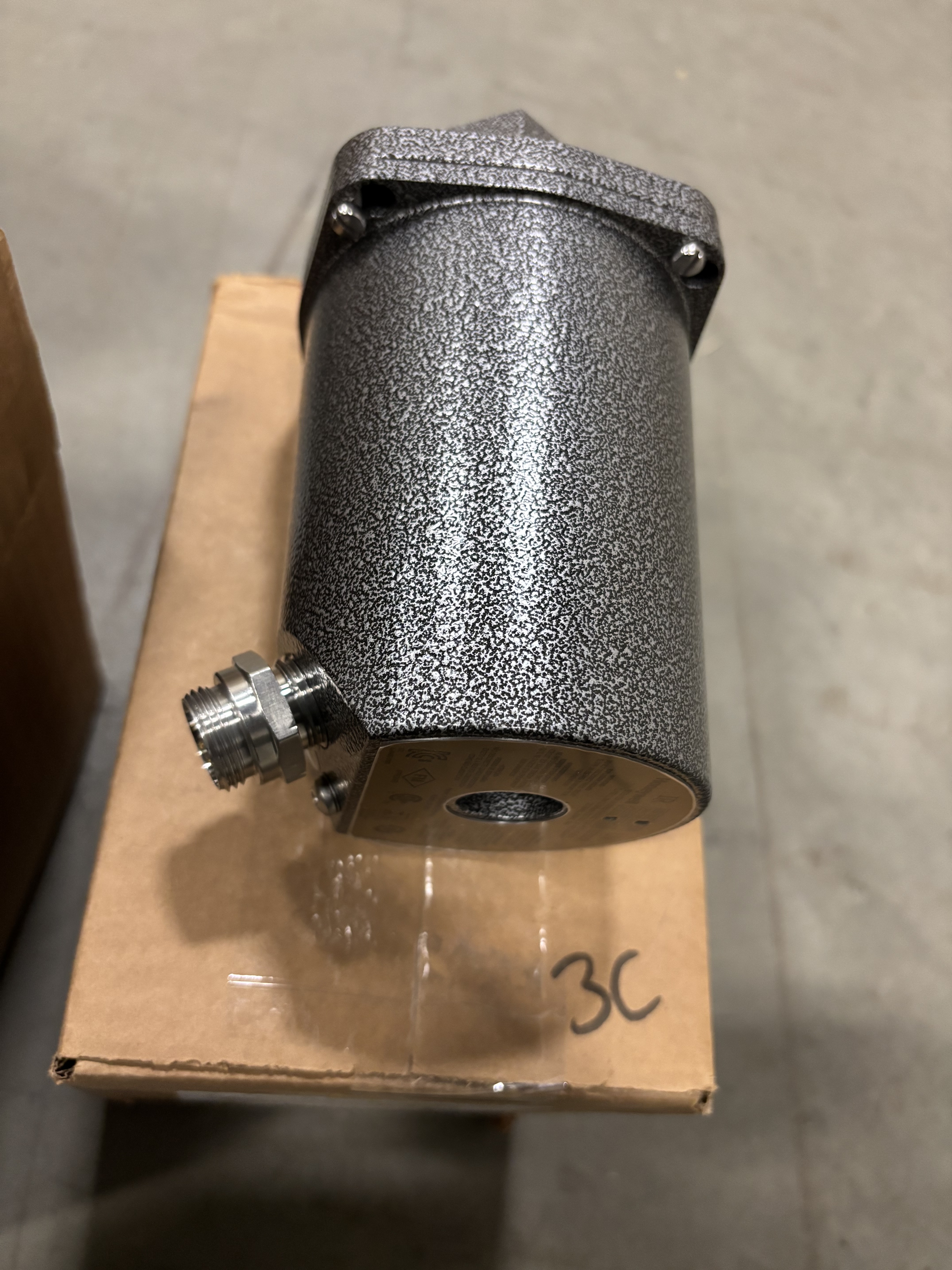

| 1 | S550BE | Iris / Honeywell Model S550BE viewing head with Turck connector; input power 24 VDC +10%, 300 mA max from signal processor; optical angle of view 1.6 degrees; ambient -40°C to +50°C; housing -40°C to +60°C; optical 750–1900 nm; CSA approved Class I, Div. 2, Groups A, B, C & D T4A; NEMA 4 | 2 |
| 2 | ISO-UNIT | 1 in. NPTF sealing union with quartz window and 1/2 in. NPTF purge port | 2 |
| Total | 4 items |
Key Listing Details
| Field | Detail |
|---|---|
| Manufacturer / Brand | Honeywell / Iris / Maxon-Honeywell product family |
| Main Product | S550BE UV/IR viewing head with Turck connector |
| Included Accessories | ISO-UNIT sealing unions |
| Quantity Included | 2x S550BE viewing heads and 2x ISO-UNIT sealing unions |
| Condition | New surplus / open-box, warehouse stored |
| Dates noted | Viewing heads: 10/7/2024 & 10/1/2024. Unions: 6/5/2023 & 4/1/2024 |
Typical Application
This lot is best described as a Honeywell flame-scanner viewing-head package for industrial burner-management and combustion-safety applications. The S550BE units are UV/IR viewing heads used with compatible signal processors to detect flame presence in industrial fired equipment. The included ISO-UNIT sealing unions provide a quartz-window sealing interface with a purge port, commonly used where the viewing head must be mounted to a process or burner sighting connection while maintaining separation from heat, pressure, or process atmosphere.
