Bachmann Dampjoint Louver Balance Damper Parts Lot
Listing ID:
ASSK-63872
Connection Status:
Disconnected
Notes:
Short Listing Summary

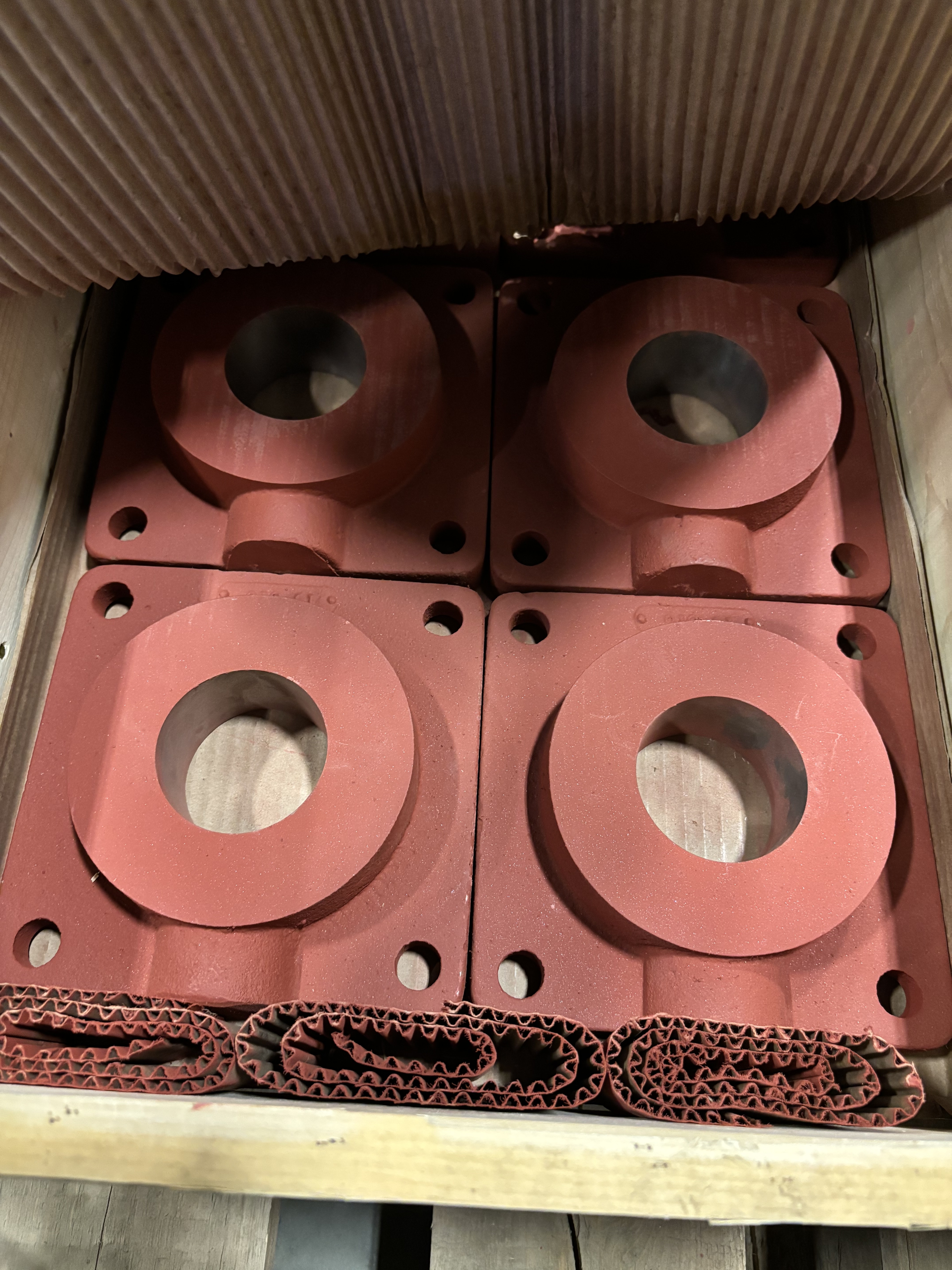

This is a Bachmann Dampjoint louver balance damper parts lot supplied for two matching job/work-order sets under Bachmann Dampjoint Project Reference 4167-2. The available parts include red-oxide painted 7-inch square bearings, 2-1/2-inch I.D. thrust collars, bearing bolt-up hardware, fixed-linkage hardware, spirol pins, and transport crates.
Included Parts
The following table combines the two duplicate Bachmann Dampjoint quote/job sets.
| Line | Bachmann Part Number | Description | Quantity Per Quote / Job Set | Total Quantity Available |
| 1 | BR25-7T-RO | Bearing, 7-inch square, 2-1/2-inch I.D., red oxide paint | 10 | 20 |
| 2 | BR25-7T-HDW-4167-2S-10 | Bearing hardware, 5/8-11 x 2-1/4 + nut + lock washer + cap screw | 40 | 80 |
| 3 | FLHDW4167-2S-11 | Hardware for fixed linkage, 3/4-10 UNC x 3-inch + 4 flat washers + lock nut | 5 | 10 |
| 4 | SP34-3560-35 | Spirol pin, 3/4-inch x 3-1/2-inch for 2-1/2-inch shaft | 5 | 10 |
| 5 | TC2535-2.5-4167-2S-9A | Thrust collar, 2-1/2-inch I.D. x 2-1/2-inch | 5 | 10 |
